03. Applanation Tonometer YZ30 (X type)

Z type is suitable for Carl Zeiss type slit lamp

The product is designed on the principle basis of Goldman tonometer.

Three types are available:R and T Type are suitable for Haig Streit type slit lamp,while Z type is suitable for Carl Zeiss type slit lamp.

Features:
1. When used with slit lamp, it can be used to examine the eyes and measure the ocular pressure.

2. Accurate measurement and total tolerance is less than 0.066KPa(0.55Hg).

3. Directly get the ocular pressure and do not need to look up the conversion table.

4. The measured ocular pressure is not affected by hardness of eye.

5. The affected ocular volume is just 0.56 cubic millimeter.

6. Adjustable measuring pressure ensures the long-term stability and reliability.

Specifications:

Measuring Range 0~1064 Kpa
Light Ring Displacement 1.53×2=3.06mm
Diameter of Prism Head 7mm
Moving Range of Prism Head 3mm

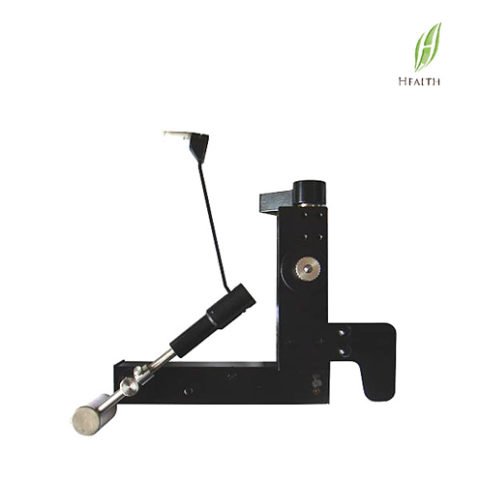

YZ30X

Accessories:

YZ30-1
