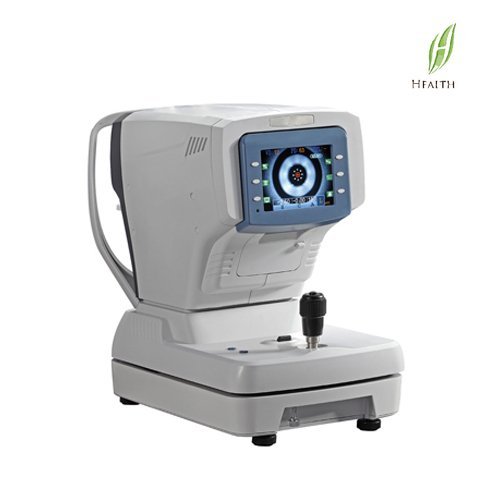

03. Auto Refractometer FRE-03

Keratometry and refractometer mode select: 1. Auto refractometer 2. Auto refractomere with Keratometer

Feathers:
1.Use the ARM processor and the latest domestic image processing, the system is fast and the image is clear.
2.Japan’s mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment,
3.more precise measurements.
4. Light rack with integral casting , CNC machining, measuring system is more stable , good consistency.
5. Data transmission with computerized vision tester, improved efficiency of online.
6. Motorized chinrest
7. Auto detachment printer
8. Auto tracking optical system
9. 5.7’ tiltable color LCD
10. With corneal curvature and dioptre measurement function (for keratometer function)

Specification:

Measurement modeK/R modeRefractive and Keratometer measurement(for keratometer function)
REF modeRefractive measurement
KEF modeCorneal curvature measurement (for keratometer function)
RefractometerVertex Distance0.0,12.0,13.75,15.0 mm
Sphere-20.00~+20.00D
(0.12/0.25D step)(VD=12mm)
Cylinder0.00~±10.00D (0.12/0.25D step)
Axis1°~180°(1° step)
Pupil Distance30~85 mm
Min. pupil diameter measurable2.0mm
TargetAutomatic fogging target
KeratometryRadius of curvature5~10mm(0.01mmstep)
Corneal Refraction33.00~67.00D(0.12/0.25Dstep)
Corneal Astigmatism0.00~-15.00D(0.12/0.25Dstep)
Angle of corneal1°~180°(1°step)
Corneal diameter2.0~12.00mm
Hardware specificationMonitor5.7 inch Color LCD
PrinterAuto detachment printer
Power saving functionOFF, 5, 15 mins (selectable)
Power supplyAC110~220 V,50/60HZ
Dimensions/weight288(W)*500(D)*480(H)mm/14kg
