05. Auto Refractometer with Keratometer FRE-05

Auto Refractometer with Keratometer

1.Measured more quikly because the Technology of Build-in Micro process and quick graphic process.
2.Quick measurement for diopter of MIN.pupil size.
3.New design of colorful sreen(5.7″ TFT LCD).
4.Auto fog chart.
5.Pupil distance auto measured available.
6.Choice for vertex distance.
7. Ability of auto-measurement after align and focus


Refractometer Vetex Distance(vd)  0.0,12.0,13.75mm
Sphere Power(SPH)  -20.00~+20.00D(in case of VD=12mm)
Cylinder Power(CYL)  0.00~±10.00D(0.12/0.25D Unit)
Axis(AX)   1~1800 (10 Unit)
Cylinder Form   -,+, ±
Pupil Distance(PD)  30~80mm
Minimum Pipul Diameter  Φ2.0mm
Keratometry Radius of Curvature 5.0~10.2mm(Increments:0.01mm)
Corneal Power 33.00~67.50D(When corner equivalent refractive
 index is 1.337;0.05/0.12/0.25D unit)
(Increments selectable from 0.12,0.25D)
Corneal astingmatism 0.0~-15.00D
(Increments selectable from 0.12,0.25D)
Axis 1~180°(Increments:1°)
Corneal Diameter   2.0~14.0mm(Increments:0.1mm)
Memory of Data 10 measure value for each right and left eye
Internal printer Uses thermal line printer
Monitor 5.7-inch color TFT LCD monitor
Environmental requirements Operation Temperature:+10 to +35℃
Humidity:30 to 75%RH
Atmospheric pressure:800~1060 hpa
Storage Temperature:-10 to +55℃
Humidity:30 to 75%RH
 Atmospheric pressure:700~1060 hpa
Transportation Temperature:-20 to +70℃
Humidity:10 to 95%RH
Atmospheric pressure:500~1060 hpa
Power supply AC100~240V,50/60HZ
Power consumption Approximately 100VA
Size 484(L)*282(W)*440(H)mm
Weight Approximately 17kg

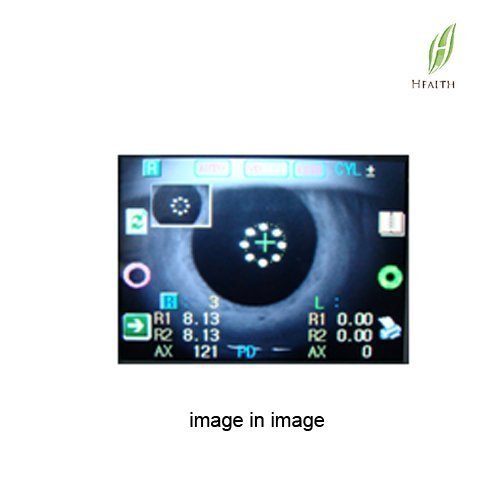

FRE-05-1 FRE-05-2 FRE-05-3
