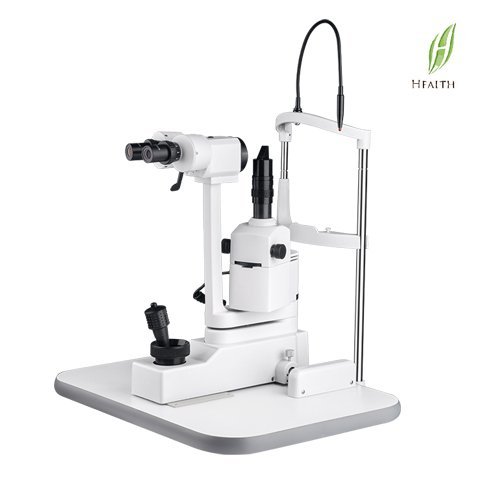

06. Slit Lamp FSL-06

Slit Lamp Microscope (Two magnification)


Microscope Microscope Type
Converging Stereoscope Microscope
Magnification selection Two Steps Magnifications
Eyepiece 10X
Magnification Ratio(Field of view) 16X(φ14.5mm)、10X(φ18mm)
Pupillary Adjustment 50mm ~ 82mm
Diopter Adjustment + – 5D
Base Side Shift 110mm
Depth shift 90mm
Height shift 30mm
Chin rest Height Shift 80mm
Fixation Target Red LED
Illumination system Slit Width 0 ~ 10mm continuous (at 10,slit becomes a circle )
Slit Height Ф10mm 、Ф3mm、 Ф1mm 、 Ф0.2mm
Filter Heat Absorption  , Red-Free , Cobalt Blue
Illumination Bulb 12v  50w  halogen lamp
Power Input Voltage 110V / 220V AC
Frequency 50 / 60 HZ
Power Consumption 68 VA
Weight and Size Gross Weight 13 kg
Dimension 455 mm (L) × 385 mm (W) × 630mm (H)
