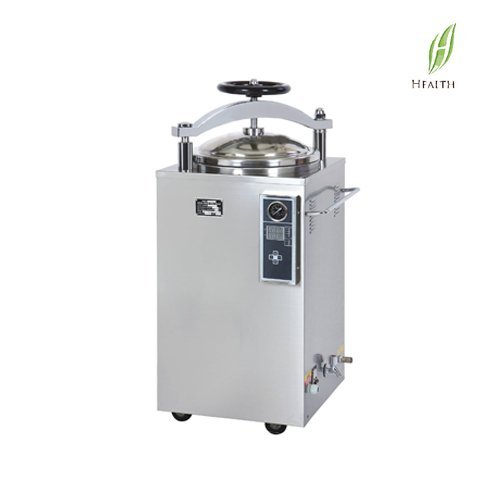

07. Vertical Pressure Steam Sterilizer, LS-HD series

Vertical Pressure Steam Sterilizer, Digital Display Automation

SKU: LS-HD series
Category:
post_tag: ,

Characteristics:
l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel  SUS304/AISI 304 -3mm
12.Possible to install drying system according request

Technical Data:

 technical data LS-35HD LS-50HD LS-75HD LS-100HD
Chamber volume 35L(φ318×450)mm 50L(φ340×550) mm 75L(φ400×600) mm 100L(φ440×650) mm
 working pressure 0.22MPa
Working temperature 134℃
Max working pressure 0.23 Mpa
Heat average ≤±1℃
Timer 0~99min  or 0~99hour59min
Adjustment of temperature 105~134℃
Power 2.5Kw/AC220V.50Hz 3Kw/AC220V.50Hz 4.5Kw/AC220V.50Hz
Overall dimension 450×450×1010(mm) 510×470×1130(mm) 560×560×1120 (mm) 540×560×1250 (mm)
Transport dimension 570×550×1150(mm) 590×590×1280(mm) 650×630×1280(mm) 680×630×1370(mm)
G.W/N.W 72Kg/56Kg 88Kg/ 68Kg 100Kg/ 80Kg 110Kg/ 85Kg

LS-HD
