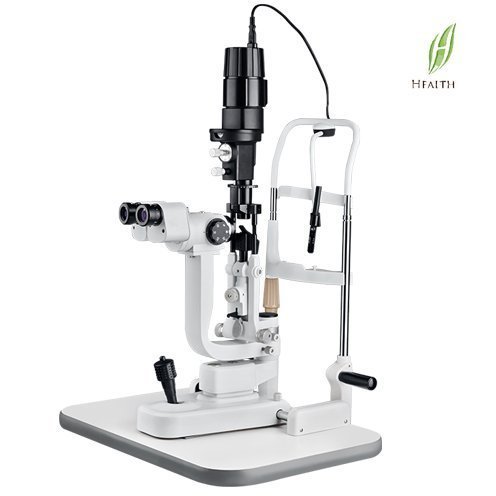

08. Slit Lamp FSL-08

Slit Lamp Microscope (5 magnification with slit inclination )

Specification:

MicroscopeMicroscope TypeGalilean stereoscopic microscope
Magnification selection5 steps by drum rotation
Eyepiece12.5X
Magnification Ratio(Field of view)6X(33mm), 10X(22.5mm), 16X(14mm),
25X(8.8mm),40X(5.5mm)
Pupillary Adjustment50mm ~ 82mm
Diopter Adjustment+ – 7D
BaseSide Shift110mm
Depth shift90mm
Height shift30mm
Chin restHeight Shift80mm
Fixation TargetRed LED
Illumination systemSlit Width0 ~ 14mm Continuous ( at 14mm , slit becomes a circle )
Slit Height0 ~ 14mm Continuous
Slit Angle0°  ~ 180°  adjustable
Slit Inclination5º,  10º,  15º ,20º
Diameter of Light SpotØ14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm and
 1 ~ 14mm Continuous
FilterHeat Absorption, Grey, Red-Free, Cobalt, Blue, Green, Yellow, Red, Anti-UV
Illumination Bulb12v  50w  halogen lamp
PowerInput Voltage110V / 220V AC
Frequency50 / 60 HZ
Power Consumption68 VA
Weight and SizeGross Weight18kg
Dimension690mm(L) × 440mm(W) × 420mm (H)
