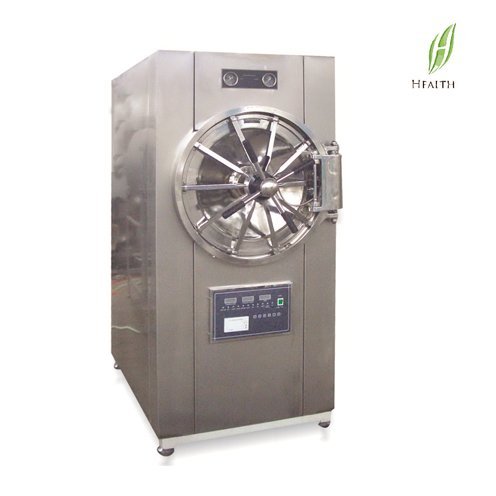

14. Horizontal Cylindrical Pressure Steam Sterilizer, WS-YDD

Horizontal cylindrical pressure steam sterilizer,Fully stainless steel structure.

post_tag: ,

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.
2.With drying function, suitable dressing drying.
3.With over-temperature, over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7.Fully stainless steel structure.
8. With printer.

Technical Data:


Technical data WS-150YDD WS-200YDD WS-280YDD
Sterilizing chamber 150L 200L 280L
 volume φ440×1000mm φ515×1000mm φ600×1000mm
working pressure 0.22 MPa
working  temperature 134℃
Adjustment of temperature 40℃ – 134℃
Time of sterilization 0-99 min
Time of drying 0-99 min
Heat average ≤± 2℃
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz
Dimension 1400×650×1600 1400×750×1700 1520×910×1900
Transport dimension 1560×820×1820 1560×910×1880 1680×1080×2100
 G.W/N.W 430/340 KG 436/350KG 570/462 KG
