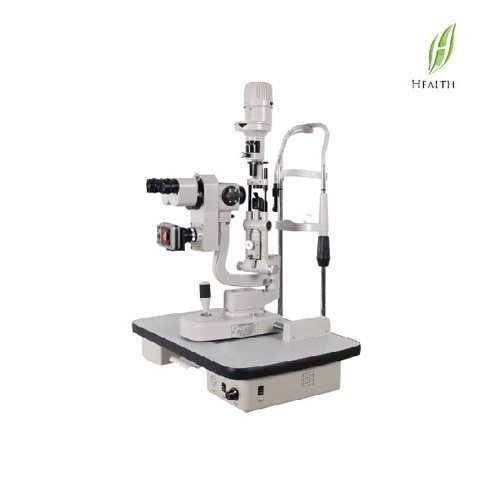

34. Slit Lamp FSL-32

Digital Slit Lamp Microscope Tower Style, Galileo Parallel; 5 magnifications (6x, 10x,16x,25x, 40x); With Cannon Camera, Memory Card (4 G); With beamslitter with adapter; With shooting button on the joystick, images saved in the memory card; With table top, without moto-table; With tonometer adapter.

SKU: FSL-32 Categories: ,

1) Five steps magnifications
2) Digital Camera: Cannon
3) 12 Mega Pixell resolution
4) Gailleo style

Specification:

Microscope TypeGalileo Parallel
DigitalExternal Digital Slit Lamp
 Magnification changerDrum Five Magnifications
 Eyepiece12.5X
 Total magnification6X,  10X, 16X, 25X, 40X
 Diopter adjustment-5D ~ +5D
 IlluminationFive Steps (Stepless Optional)
Slit image width 0mm~14mm continuous
 Slit image length 1mm~14mm continuous
 Diameter of aperture φ14mm、φ10mm、φ5mm、φ2mm、φ1mm、φ0.2mm
 Slit angle 0°- 180° Adjustable
 Slit inclination angle 5°10°15°20°
 Light source High Light Source
 Filter Heat absorption, Grey, red free, Cobalt blue
 FixationRed LED
 Illumination German OSRAM Halogen Tungsten Lamp
 Input voltage 110V/220V (±10%)
 Input power 60VA
 Diffuse lens Yes
 Preset lens Yes
 Laser Interface Optional
 Applanation Tonometer Interface Yes
 Dimension 720*495*480mm
 Weight25kg/21kg
 Package Carton

FSL-32
