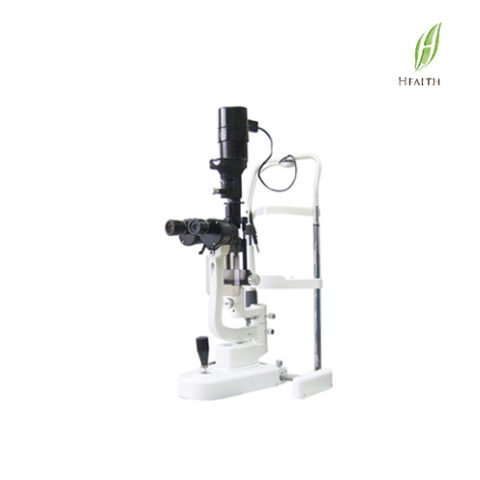

40. Slit Lamp FSL-38

5 magnifications: 6×(Φ33mm), 10×(Φ22.5mm), 16× (Φ14mm), 25×(Φ8.8mm), 40×(Φ5.5mm)

Features

Imported Schott optics from Germany reduce optical distortion, increase clarity and depth of focus.

All the optical lenses are moisture-proof, mildew-proof and anti-reflected treated.

Excellent optical performance and long span usage.

Five-step drum magnification for eyepiece. Sclear vein could be observed under the 40× magnification.

All the joints can be connected by accessories with international standards.



Specifications

Microscope Type Galilean stereoscopic microscope
Objective Magnification Five steps drum magnification
Eye Piece 12.5x
Magnifications(Field of View) 6×(Φ33mm), 10×(Φ22.5mm), 16× (Φ14mm), 25×(Φ8.8mm), 40×(Φ5.5mm)
Pupilary Adjustment 55mm~75mm
Diopter Adjustment -5D~+3D
Slit Width 0~9mm adjustable(slit is round when the slit width is 9mm)
Slit Height 1mm~8mm adjustable
Aperture of Diameter φ9mm、φ8mm、φ5mm、φ3mm、φ2mm、φ1mm、φ0.2mm
Slit Angle 0°~180° adjustable
Slit Inclination 5°, 10°, 15°, 20°
Diameter of Light Spot φ9mm, φ8mm, φ5mm, φ3mm, φ2mm, φ1mm, φ0.2mm
Filter Thermal safety, grey, red-free, cobalt blue
Illumination Bulb 12V/30W Halogen Bulb
Input Voltage AC 220V/110V±10%
Electrical Safety Standard Conform to IEC60601-1,Class I,Type B
Packing Volume 720mm x 495mm x 480mm
Total Weight 24Kg
Optional Accessories Applanation tonometer, measuring eyepiece, trihedron lens, gonioscope, funduscope, aspheric lens
