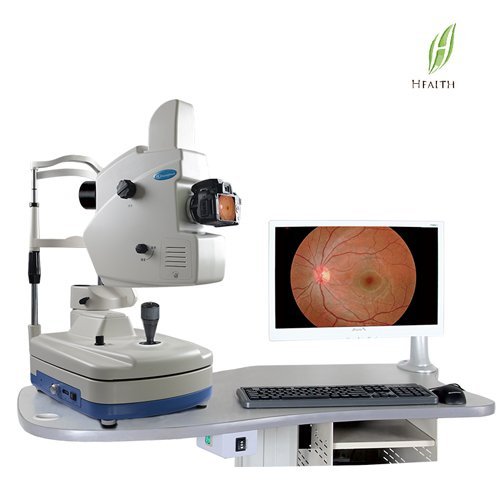

02. Fundus Camera FFC-B

No-mydriatic fundus and FFA, CE

Main Features

The first generation,Launched the first digital fundus camera, instrument in China, Bid farewell to the fundus examination film era.
The second generation,Launched ,infrared lighting technology into the non-mydriatic fundus , photography era, and has been imitated by domestic counterparts
Third-generation, launched double-dot alignment system, leading domestic technology upgrade fundus examination.
Fourth-generation, launched the first auto focus and exposure system in China, and allows fundus  examination becomes so simple.
Installed Nikon D5200 camera, let the images more higher quality 24.1 million pixel resolution.
Product Description

With function: Fundus fluorescence

auto focus, auto flash & manual , you may select the auto or manual from the software.

Working: Mydriatic, NON-Mydriatic, Little pupil 3.3mm

Field scope:                                       up to  53°

Working distance:                            40mm

Non-mydriatic Camera:                  Supporting

Minimum pupil diameter :             3.3 mm

Observation light source:                Infrared light

Refractive compensation range:   ≥±15D

Fixation:                                            External fixation

5 internal fixation (9 internal fixation optional)

Assisted alignment:                        Two round dots alignment.

Focus way:                                        Manual , auto

Exposure way:                                  Manual , auto

Internet interface:                         Dicom 3.0 interface, LAN(OPTIONAL)

Working distance:                           Horizontal  ± 30°

Working distance :                          42mm ±2mm

Workstation:                                     Electromotive-table(elevator optional one )

Printer:                                              High quality inkjet printer (OPTIONAL)

Computer:                                         Optional



Color fundus pictures

FFC-A-1 FFC-A-2

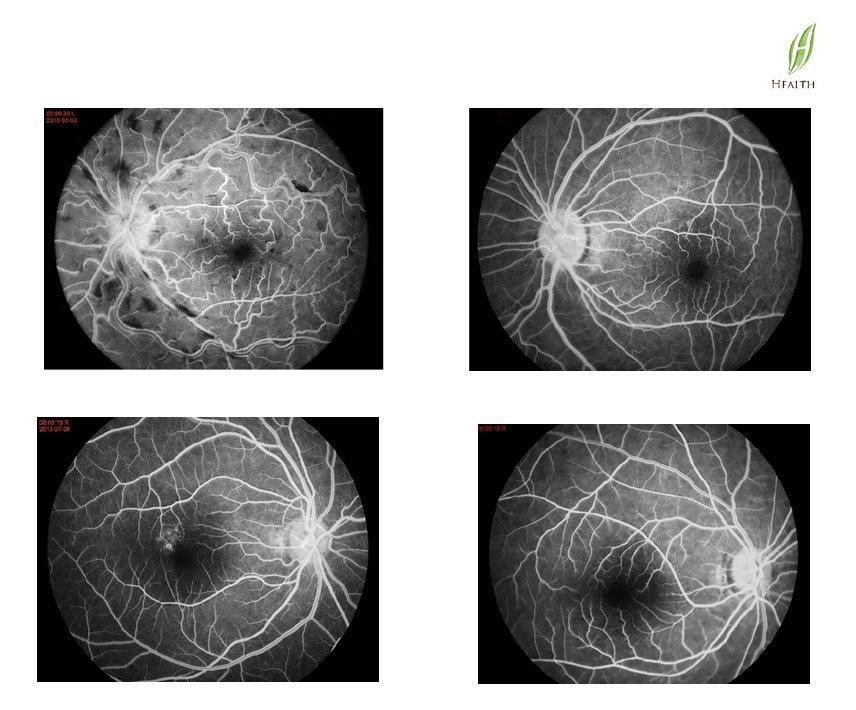

FFA fundus pcitures

FFA FUNDUS PIC
