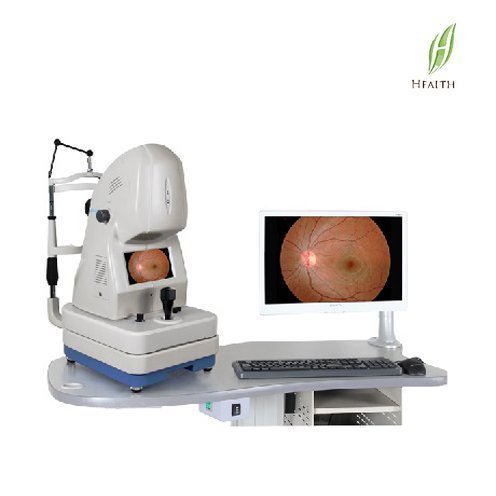

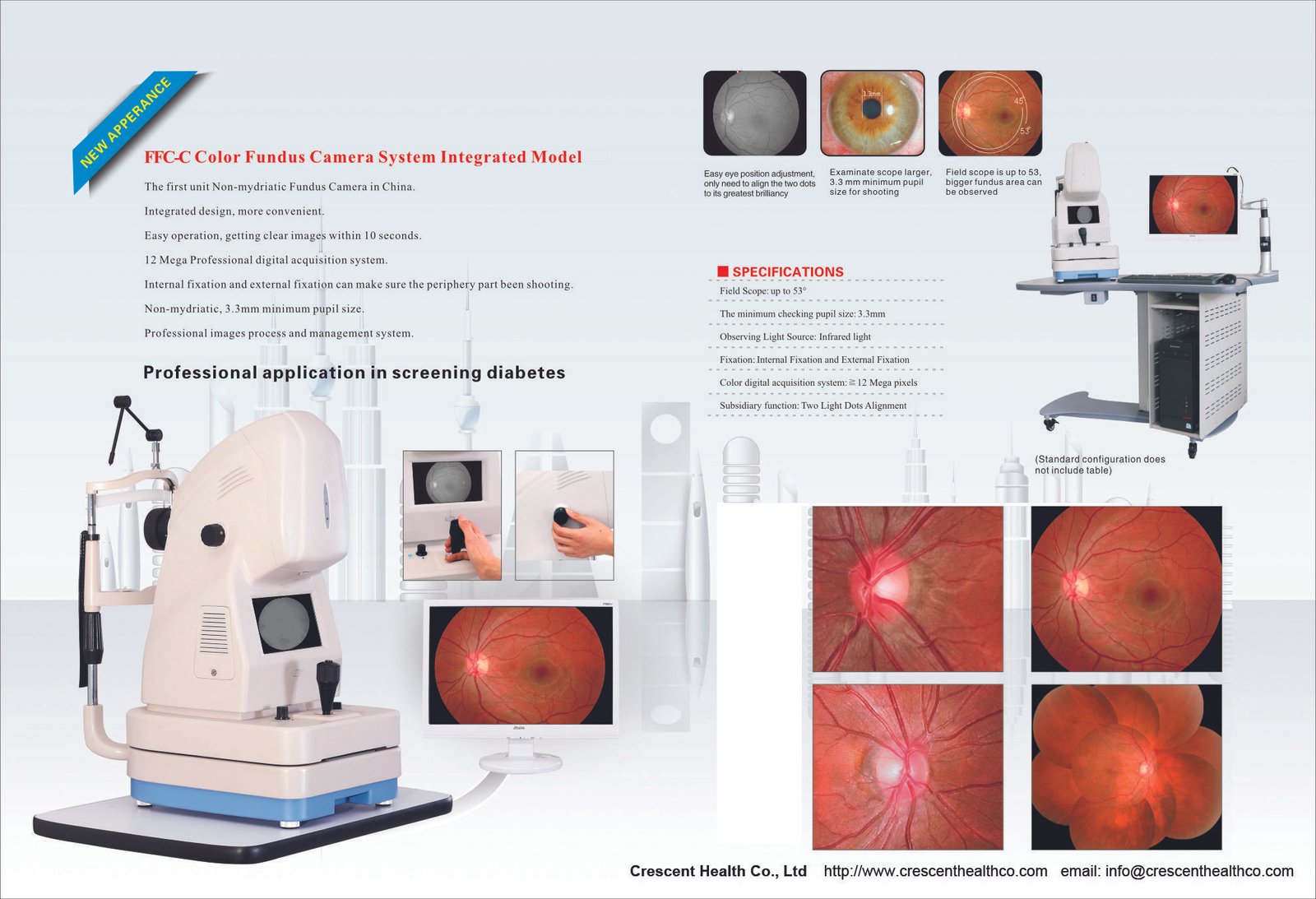

03. Fundus Camera FFC-C

No-mydriatic fundus, integrated type, CE

Main Features

Working model: Non-Mydritic
Field of view: up to 53 D
Minimum pupil size: 3.3mm
Patient diopter range: -10 D to + 10 D
Observation light source: Infrared LED
Eye fixation target: Internal LEND + External LED
Eye position aid: Alignament Dots
Sensor resolution: 12M Max
Display monitor: 7 inch LCD+ 17 Inch post processing monitor
Working distance : 40mm
Base movement: F-B:50 mm; L-R: 90 mm; U-D:30mm
Fine adjustment: 15mm
Electrical
Power suppler: AC 220V/100V /50Hz
Working temperature: -5D-40D
Working humidity: 0%-85%
Physical
Dimension: 487 mm * 310 mm * 630 mm
Weight: 32kg
Software
Image Post Processing: brightness, contrast, gamma, color, smooth, sharp, etc.
Focus processing: measure, mark, patching up, etc.
Documents management: record, search, sort, report, etc.

Color fundus pictures

FFC-A-1 FFC-A-2
