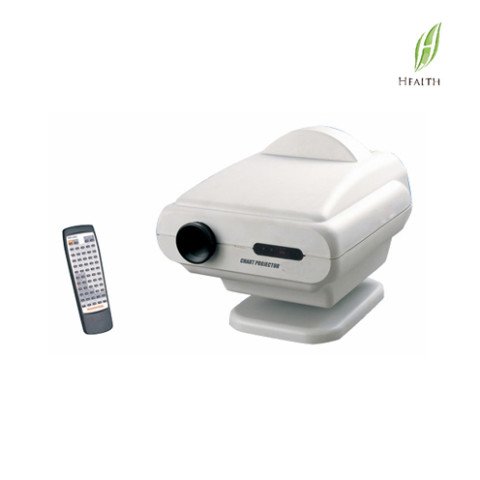

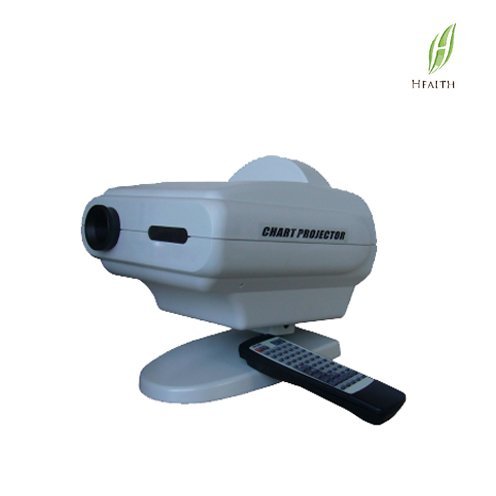

03. Auto Chart Projector FCP-03

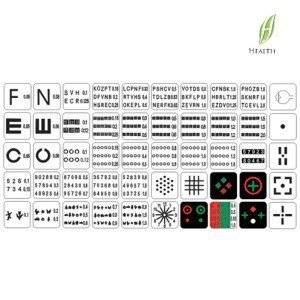

50 charts and various masks
Landolt,Letter,Child,Snellen,50 kinds of charts ,and horlzontal line,vertical line,one chart,various masks can be selected by the remote control box
Fast,silent chart disk rotation.It moves to the following chart in a maximum of 0.3 seconds.
User program mode :2kinds of programs can be selected 48 kinds (maximum) of chart and mask are memorizable.

Specifications:

Projection distance2.0 to 7.0m
Projection enlargement rate30 (at 5m distance projection)
Numbers of charts50 charts
Projection field335mm × 222mm  (at 5m distance projection)
Tilting angle10°each upwards and downwards from horizontal level
Light source12V 35W (halogen lamps)
ElectricityAC 110V/60HZ or 220V/50HZ
Automatically power offafter 5 minutes
Dimensions248 (W) × 336 (L) × 234 (H)MM
Weight4kgs
Replacement Partstable sets, wall mounting brackets, visual acuity chart projector bracket, polarization color filter head, red and green lens, polarizer



FCP-03-1
