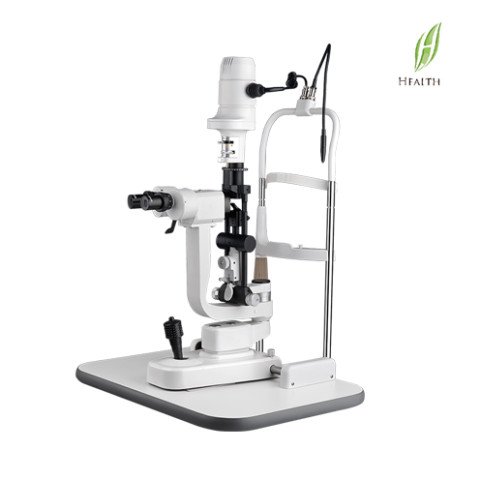

03. Slit Lamp FSL-03

Slit Lamp Microscope (2 magnification with slit inclination) (slit width from 0-10 mm)

Specification:

Microscope Microscope Type Converging stereoscope microscope
Magnification selection two steps magnifications
Eyepiece 10X
Magnification Ratio(Field of view) 10X(18mm),16X(14.5mm)
Pupillary Adjustment 50mm ~ 82mm
Diopter Adjustment +- 5D
Base Side Shift 110mm
Depth shift 90mm
Height shift 30mm
Chin rest Height Shift 80mm
Fixation Target Red LED
Illumination system Slit Width 0 ~ 9 mm Continuous ( at 9mm , slit becomes a circle )
Slit Height 0 ~ 8mm Continuous
Slit Angle 0°  ~ 180°  adjustable
Slit Inclination 0°  ~  23 °
Diameter of Light Spot Ø9mm, Ø8mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm
Filter Heat Absorption , Grey ,Red-Free , Cobalt Blue
Illumination Bulb 12v  50w  halogen lamp
Power Input Voltage 110V / 220V AC
Frequency 50 / 60 HZ
Power Consumption 68 VA
Weight and Size Gross Weight 18kg
Dimension 690mm(L) × 440mm(W) × 420mm (H)
