04. Slit Lamp FSL-04

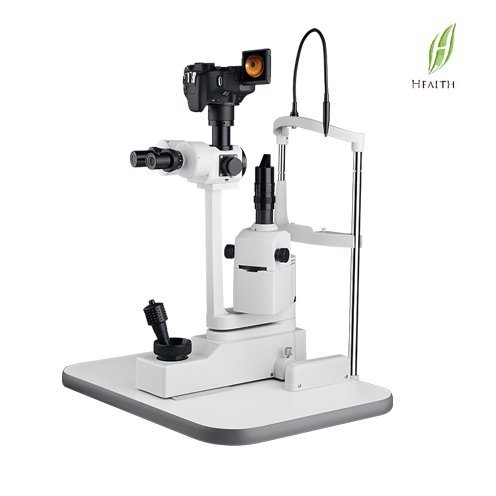

Slit Lamp Microscope with camera and beam splitter (One magnification)

• Slit lamp

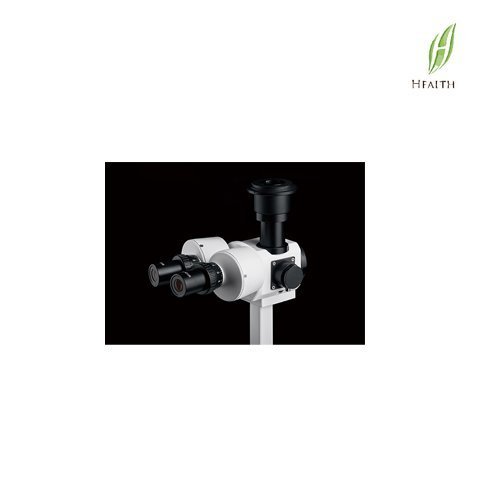

• Camera interface (splitter / adapter)
• Professional SLR camera (standard configuration does not contain a camera lens)
• Slit lamp image processing systerm
• Computer (optional)
• High-resolution ink-jet printer (optional)

Microscpe Microscope Type Converging Stereoscope Microscope
Magnification Selection 2 step magnifications
Eyepiece 10x
Magnification Ratio 10×(φ18)
 Diopter Adjustment 50mm ~ 82mm
Pupillary Adjustment +5D ~ -5D
Base Side Shift 110mm
Depth Shift 90mm
Height Shift 30mm
Chin rest Height Shift 80mm
Fixation Target Red  LED
Illumination System Slit width 0 ~ 10mm continuous (at 10mm,slit becomes a circle )
Slit Height Ф10mm 、Ф3mm、 Ф1mm 、 Ф0.2mm
Filter Heat absorption ,Red-free , Cobalt Blue
Illumination Bulb 12V 50W halogen lamp
Power Input Voltage 220V/110V
Frequency 50H/60Hz
Power Consumption 68VA
Weight and size G.W 13kg
N.W 11kg
Main Dimension 455mm(L)× 385mm(W)× 630mm(H)
