08. Humphrey visual field analyser ( Perimeter) FFS-08 ( all in one type)

Projection Perimeter with software With computer (build-in) Touch Screen


China’s first full-field projection perimeter

Software and hardware design is fully in line with international standards.

Automated,user-friendly design,easier operation

Automatic pupil measurement, monitoring nd correction of eye position

3 minutes to complete the threshold perimetry

Report analysis is consistent with the international mainstream.

All in one type, touch screen


 Device Type Integrated Type
 Stimulate point appearing way Optical projection
Detection method Static perimetry
Detection range 0-90 degree
Background light Yellow , white
Background brightness White:31.5asb Yellow:315asb
Visual Target color Red,blue,white
Visual Target Brightness 0asb-10000asb
Vision Target interval time ≥200ms(customizable,no limit)
Visual target holding time ≥200ms(customizable,no limit)
Brightness level 0-51db
Visual Target Size(Goldman) I Grade II Grade III Grade V Grade
Detection strategy Full-threshold, fast threshold, custom,Two notation, three notation, quantify defects
Threshold Policy Intelligent dynamic, fast intelligent dynamic, age-related,

The threshold, a single strength

Threshold Test Mode Center 10-2, Center 24-2, Center 30-2, Center 60-4, Nasal step, macula
Screeing, special test mode Center 40; Center 64; Center 76; 80; Center Armaly; Peripheral 60; Nasal step;Armaly

Full FieldFull Field 81; Full Field 120; Full Field 246;upper 36; upper 64; Esterman;

Fixation monitoring Dynamic real-time video monitoring, physiological blind spot monitoring,

Eye tracking curve, eye position offset alarm

Analysis Software Reliability analysis, analysis of a single vision, triple report analyzes
Report Figure Value, grayscale, the overall bias decibel chart,  The overall deviation probability map,

chart pattern deviation decibels, Pattern deviation probability plot, staring Figure

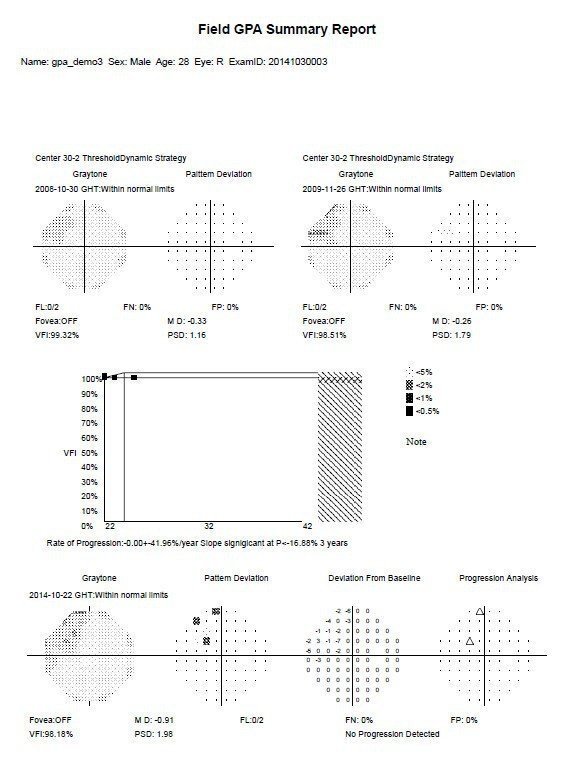

FFS-07 report

FFS-07 report 2FFS-07 report 3FFS-07 report 4FFS-07 report 5FFS-07 report 6FFS-07 report 7
