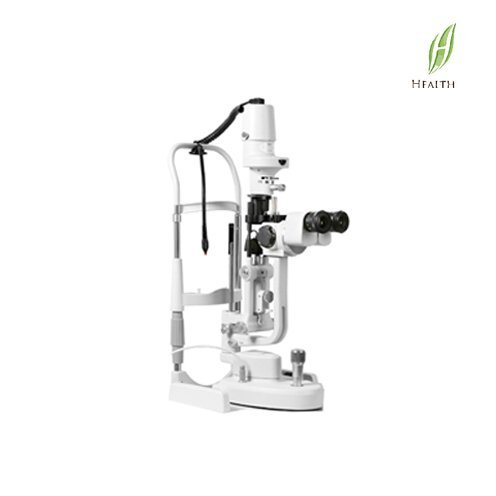

21. Slit Lamp FSL-20

6X,10X,16X,25X,40X (FSL-20 with 5 magnifications) 10X,16X,25X (FSL-20 with 3 magnifications) 3v/3w LED Lamp

Powered by wide voltage LED module
Flexible compatibility
It is compatible with input voltage of 6V-24V(AV or DC)
Excellent and reliable Performance
Built-in voltage regulator,overvoltage and over-current protection system prong the life span of the slip lamp. The light of FSL-20 remains stable and bright after several long periods of full power tests.

Specification:

Microscope Microscope type: Galilean system
Magnification changer: Revolving drum(5 steps or 3 steps)
Total magnification: 6X,10X,16X,25X,40X   (FSL-20 with 5 magnifications)
10X,16X,25X              (FSL-20 with 3 magnifications)
Ocular magnification: 12.5 X
Angle between eyepieces: 13°
Ocular field: Ø18mm
Inter pupillary distance: 52mm~78mm
Diopter adjustment: +6D to -6D
Object image field Ø in mm: Ø34.7(6X),Ø22(10X),Ø13.5(16X),Ø8.5(25X),Ø5.5(40X) (FSL-20 with 5 magnifications)
Ø22(10X),Ø13.5(16X),Ø8.5(25X)                                (FSL-20 with 3 magnifications)
Slit Illumination Slit image width: 0~14mm continuous ( slit becomes a circle at 14mm)
Slit image length: 1~14mm continuous
Lamp: 3v/3w LED Lamp
Slit image radial range: 0~180°
Filters: Heat absorbing filter, ND fliter, Red-free filter, Cobalt Blue filter
Aperture diameters: Ø0.2mm、Ø1mm、Ø2mm、Ø3mm、Ø5mm、Ø10mm、Ø14mm、
Illumination intensity: ≥60KLX
Instrument Base Longitudinal movement 110mm
Lateral movement 110mm
Vertical movement 30mm
Fine base movement 15mm
Chin rest Vertical movement 80mm
Fixation LED
Power Supply Input voltage 220V/110V~±10%
Input frequency 50Hz/60Hz
Power Consumption 20VA (max)
Output voltage Lamp 3V, Fixation 3V
Packing Volume Dimension 760mm*470mm*570mm
Gross Weight 22kgs
Net Weight 16kgs

FSL-20-1
