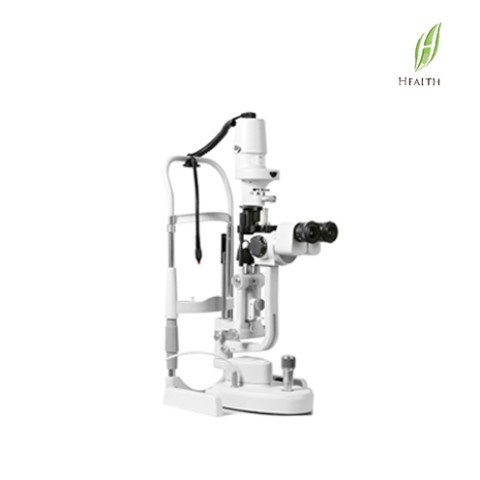

22. Slit Lamp FSL-21

6X,10X,16X,25X,40X (FSL-21 with 5 magnifications) 10X,16X,25X (FSL-21 with 3 magnifications) 6v/20w halogen incandescent light bulb

Powered by halogen light source
Specification:

MicroscopeMicroscope type:Galilean system
Magnification changer:Revolving drum(5 steps or 3 steps)
Total magnification:6X,10X,16X,25X,40X   (FSL-21 with 5 magnifications)
10X,16X,25X              (FSL-21 with 3 magnifications)
Ocular magnification:12.5 X
Angle between eyepieces:13°
Ocular field:Ø18mm
Inter pupillary distance:52mm~78mm
Diopter adjustment:+6D to -6D
Object image field Ø in mm:Ø34.7(6X),Ø22(10X),Ø13.5(16X),Ø8.5(25X),Ø5.5(40X) (FSL-21 with 5 magnifications)
Ø22(10X),Ø13.5(16X),Ø8.5(25X)                                (FSL-21 with 3 magnifications)
Slit IlluminationSlit image width:0~14mm continuous ( slit becomes a circle at 14mm)
Slit image length:1~14mm continuous
Lamp:6v/20w halogen incandescent light bulb
Slit image radial range:0~180°
Filters:Heat absorbing filter, ND fliter, Red-free filter, Cobalt Blue filter
Aperture diameters:Ø0.2mm、Ø1mm、Ø2mm、Ø3mm、Ø5mm、Ø10mm、Ø14mm、
Illumination intensity:≥50KLX
Instrument BaseLongitudinal movement110mm
Lateral movement110mm
Vertical movement30mm
Fine base movement15mm
Chin restVertical movement80mm
FixationLED
Power SupplyInput voltage220V/110V~±10%
Input frequency50Hz/60Hz
Power Consumption30VA (max)
Output voltageLamp 6V, Fixation 3V
Packing VolumeDimension760mm*470mm*570mm
Gross Weight23kgs
Net Weight17kgs

FSL-21-2 FSL-21-1
