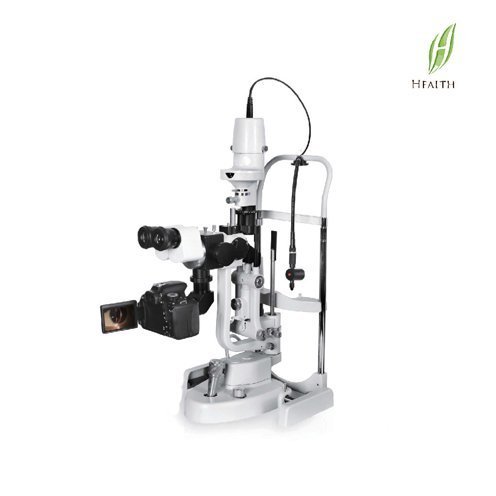

23. Slit Lamp FSL-21DC

Intergrated with profressional digital camear, excellent optical system, digital slit lamp can provide a high quality ophthalmic image.

Intergrated with profressional digital camear, excellent optical system, digital slit lamp can provide a high quality ophthalmic image.
Specification:

Microscope Microscope type: Galilean system
Magnification changer: Revolving drum(5 steps)
Total magnification: 6X,10X,16X,25X,40X
Ocular magnification: 12.5 X
Angle between eyepieces: 13°
Ocular field: Ø18mm
Inter pupillary distance: 52mm~78mm
Diopter adjustment: +6D to -6D
Object image field Ø in mm: Ø34.7(6X),Ø22(10X),Ø13.5(16X),Ø8.5(25X),Ø5.5(40X)
Slit Illumination Slit image width: 0~14mm continuous ( slit becomes a circle at 14mm)
Slit image length: 1~14mm continuous
Lamp: 6v/20w halogen incandescent light bulb
Slit image radial range: 0~180°
Filters: Heat absorbing filter, ND fliter, Red-free filter, Cobalt Blue filter
Aperture diameters: Ø0.2mm、Ø1mm、Ø2mm、Ø3mm、Ø5mm、Ø10mm、Ø14mm、
Illumination intensity: ≥50KLX
Instrument Base Longitudinal movement 110mm
Lateral movement 110mm
Vertical movement 30mm
Fine base movement 15mm
Chin rest Vertical movement 80mm
Fixation LED
Power Supply Input voltage 220V/110V~±10%
Input frequency 50Hz/60Hz
Power Consumption 30VA (max)
Output voltage Lamp 6V, Fixation 3V
Packing Volume Dimension 760mm*470mm*570mm
Gross Weight 25kgs
Net Weight 22kgs

FSL-21DC-1
