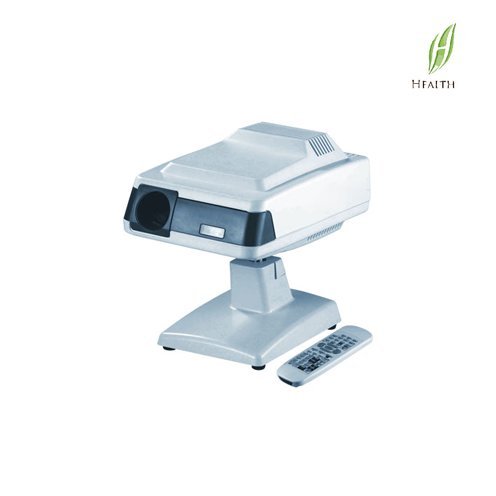

13. Auto Chart Projector FCP-16

FCP-16 is a multi-function instrument,which provided excellent design,simply operation,and quick inspections techonical vision.
Body rotation and flexible
Spherical Pillarless projector to facilitate multi-angle rotation
Filter function
Filter function can be realized red / green display
Clear picture
High-definition projection screen

Specifications:

Type Snell-en Compatible Charts feature 33
Charts (randomly accessible )with 5 different types (Letters, Landolt C,Literate E,Numerals Kindergarten) 60  different masks, High speed chart switching (0.3 seconds)
Remote Control remote control system
Filterred/green
Distance of Projector2.2m ~ 6.5m
Tilting Angle 360º
LampHalogen Lamp: 6V 20W
Battery1.5V
Power SourceAC88V ~ AC265V 50/60 Hz
Auto Shut off Function 6/12/18/24 minutes
Dimension210(W) × 345(D)×195(H)mm
N.W & G.W 6.6kg & 9.45kg

FCP-16-1
