The main body of ALE-1000
- 1. High-resolution 640*480,true color 5.7 inch LCD,display 1:1 actual size of lens graphics,icons,user-friendly operator interface.
- 2. Smooth shape ergonomic design,main engine,scanners split type configuration.
- 3. Many varieties of lens processing program,including the CR-39 resin piece,high flap lens, super-hard diaphragm,glass,PC lens and Trivex lenses,which can fully meet the needs of the industry.
- 4. It has two modes of operation with the optical center/geometric center.
- 5. It can be corrected scanning data,including axis and the distance between nose and eye.
- 6. It has 100 mm diameter grinding wheel,can be processed high curved lenses.
- 7. It has bevel polishing function,significant legislation glasses distinguished.
- 8. Inheritance the tradition of LE series lens edger security, stability,strong,durable.
Direction of Diagram:
- 1. outer cover (voice-proof)
- 2. water-proof inner cover
- 3. head pressure adjusting knob
- 4. the head
- 5. the sensor of head base(cursor)
- 6. lens chuck
- 7. power switch
- 8. wheels
- 9. horizontal adjustment foot
- 10. operation panel
Direction of Wheel:
- 1. rough grinding wheel: used for CR or PC rough grinding
- 2. bevel polishing wheel: used for CR or PC bevel polishing
- 3. flat polishing wheel:used for CR or PC flat polishing
- 4. glass rough grinding wheel: used for glass rough grinding
- 5. bevel fine grinding wheel: used for bevel fine grinding
- 6. flat fine grinding wheel: used for flat fine grinding
Direction of Control Panel:
- F1:lens choice(PC,resin lens,HI Index,HC superhard coating,glass lens,Trivex)
- F2:choice for bevel and flat shape
- F3:chuck pressure choice 1/2/3
- F4:polishing choice
- F5:Boxing system and PD system choice
- DATA:adjustment to the scanning data
- M1:ID works number(not available yet)
- M2:X(horizontal excursion)
- M3:Y(vertical excursion)
- M4:θ(turning angle)
- M5:DBL(distance of nose bridge)
- M6:SIZE choice—-default

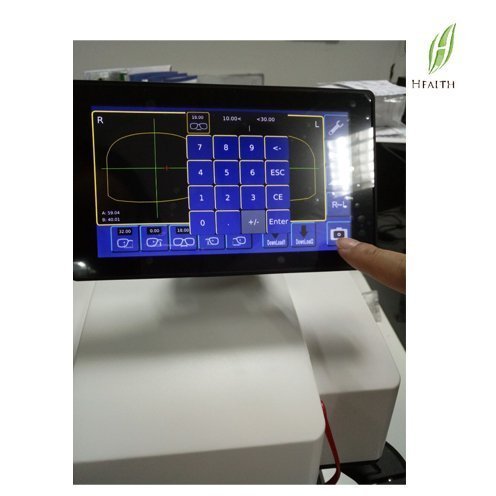

- 1. Touch screen
- 2. Fast data reading
- 3. Shape and size of the scope can be edited
- 4. The integrity design of scanner and center meter
Direction of Scanner:
- 1. Disaply ( touch screen)
- 2. Suction cup holder
- 3. Lens carrier
- 4. The rotary shaft of center meter
- 5. Ground lead
- 6. USB rim
- 7. Communication port 1 (COM1)
- 8. Communication port 2 (COM2)
- 9. Power switch
- 10. Adapter plug
auto lens edger ALE-1000
Power of main motor:380W
Power of main motor:60W
|8||Certificate of quality||1|
