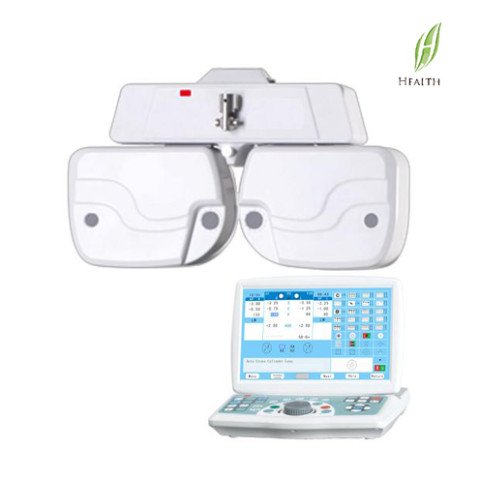

06. Auto Vision Tester FVT-12

7.0-inch color LCD touch screen
Stylish and compact design
Auto detachment printer
Independent PD adjustment
Built-in LED for near vision illumination
Data transmission with auto refractometer and auto projector


Sphere -19.00~+16.75D (0.25D/0.50D/1.00D/3.00D steps)
Cylinder -6.00D~+6.00D 0.25D steps
Axis angle 0~180° 1°/5°steps
Pupillary Distance Distant range: 52~80mm 0.5/1mm steps
Close range: 50~80mm 0.5/1mm steps
Rotary Prism 0~20△ (0.1 △/0.5△ )
Cross Cylinder Lens ±0.25D/±0.50D
Plane Retinoscope +1.50D(67cm) +2.00D(50cm)
Auxiliary Lens PH Binoculus(¢=1.0mm)
RL(Right eye)、GL(Left eye)
Polaroid(Right eye 135°/45°; Left eye 45°/135)
Prism(Right 6BU ,Left 10BI)
Cross Cylinder Lens (±0.50D Axis=90°)
PD Lens
Major Size 365mm×280mm×110mm   3.8 kg
Keyboard Size 230mm×195mm×190mm   1.2 kg
Power Box Size 236mm×126mm×115mm    2.1 kg
Power Supply AC 220V 50HZ or AC 110V 60HZ,90W
Net Weight 7.1kg


FVT-12-1It can work with auto refractometer,CHAROPS CR-7000, CRK-7000 & HUVITZ HRK-7000.
